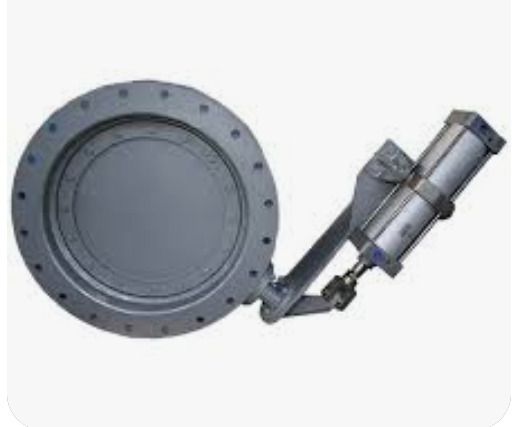

Pneumatic Butterfly Damper

Get a Price/Quote

MOQ : 10 Pieces

Pneumatic Butterfly Damper Specification

Diameter
100 mm to 2000 mm

Torque
50-800 Nm (size dependent)

Phase
Single / Three Phase (if electric accessories used)

Shape
Circular / Square

Product Type
Pneumatic Butterfly Damper

General Use
Industrial air and gas flow regulation

Material
Mild Steel / Stainless Steel

Type
Wafer / Flanged end

Capacity
Up to 10000 m3/h (customized as per requirement)

Weight (kg)
35-120 kg (varies with size)

Computerized
No

Automatic
Yes

Touch Screen
No

Control System
Pneumatic Actuator with positioner

Surface Treatment
Epoxy coated / Hot Dip Galvanized

QC System
100% hydro and pneumatic tested

Tolerance
1 mm

Drawing
Available on request

Voltage
24V / 110V / 220V AC (for actuator solenoid valve)

Dimension (L*W*H)
Customized as per application

Feature
Leak proof, Low maintenance, Robust construction

Color
Grey / Silver / Customized

Position Indicator
Provided

Connection Standard
ANSI / DIN / IS

Working Media
Air, Gas, Dust, Fume, Flue gas

End Connection
Wafer / Lug / Flanged

Operation Pressure
3 Bar to 6 Bar (compressed air supply)

Mounting
Vertical / Horizontal

Accessories
Solenoid valve, Limit switch, Positioner, Manual override

Operating Temperature
-20C to 400C (depends on material selection)

Actuator Type
Double acting / Spring return pneumatic actuator

Leakage Class
Class IV / VI

Cycle Life
More than 100,000 cycles

Sealing Type
Elastomer, Metal or PTFE

Installation
Indoor / Outdoor

Pneumatic Butterfly Damper Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Pneumatic Butterfly Damper

The Pneumatic Butterfly Damper is a resplendent solution for highly recommended industrial air and gas regulation, offering prodigious flow capacity up to 10,000 m3/h. Equipped with potent sealing-Elastomer, Metal, or PTFE-it ensures leak-proof performance under reduced operating pressures (3-6 Bar). This robust damper features a double acting or spring return actuator, customizable mounting, and operates efficiently at temperatures from -20C to 400C. Savings are amplified with low maintenance, quality-tested construction, and remarkable cycle life exceeding 100,000 cycles. Available in multiple standards, finishes, and sizes (100-2000 mm), tailored to meet diverse industrial needs.

Versatile Application Across Industrial Sectors

The Pneumatic Butterfly Damper is expertly designed for various application places such as power plants, chemical industries, cement factories, and emission control systems. Its area of application extends to the regulation of air, gas, dust, fumes, and flue gases. Equipped with a leak-proof body and versatile positioning options, this damper stands out for its robust construction, low maintenance, and adaptability in both indoor and outdoor environments, providing reliable operation in challenging industrial conditions.

Domestic Market Presence and Delivery Process

Serving the entire Indian domestic market, this Pneumatic Butterfly Damper is readily available for rapid deployment. Samples can be arranged upon request for product evaluation. Individual units are carefully packed, transported with secure goods transport methods, and promptly handed over to ensure timely arrival at your site. Typical delivery time ranges from 2 to 4 weeks, depending on customization and order size, guaranteeing seamless installation and minimized downtime for your operations.

FAQ's of Pneumatic Butterfly Damper:

Q: How does the Pneumatic Butterfly Damper enhance industrial flow regulation?

A: This damper offers precise regulation of air, gas, dust, and fumes with high reliability, thanks to its potent sealing options, robust construction, and advanced pneumatic actuator system. It supports cycle life beyond 100,000 operations for consistent industrial use.

Q: What media types are suitable for this damper's operation?

A: The damper is designed to work efficiently with air, various gases, industrial dust, fumes, and flue gases, making it versatile for multiple manufacturing and energy-generation sectors.

Q: Where can the Pneumatic Butterfly Damper be installed?

A: It is suitable for both indoor and outdoor installations, compatible with vertical or horizontal mounting in diverse environments such as power plants, emission control units, and ventilation systems.

Q: What is the process for obtaining a sample?

A: Samples are available upon request. Customers can contact the supplier, and a sample will be arranged, typically shipped through reliable transport and handed over for evaluation within a specified timeframe.

Q: What benefits do the sealing options provide?

A: With Elastomer, Metal, or PTFE sealing, the damper achieves varying leakage classes (IV / VI), ensuring dependable, leak-proof performance for specific temperature and media requirements.

Q: When can I expect the damper to arrive after placing an order?

A: With efficient goods transport, customers can expect the damper handed over and arriving on-site within 2 to 4 weeks of order confirmation, depending on customization and logistics.
